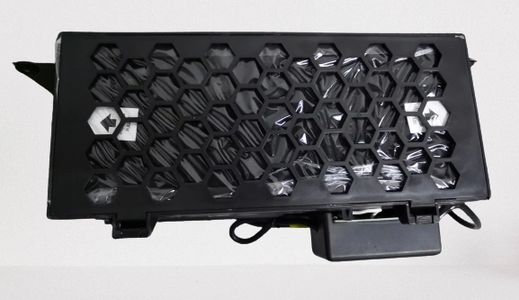

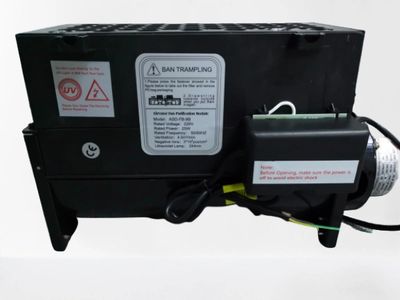

Elevator air sterilizer

---

Integrating air sterilization and purification module

 easy installation

large air flow

 strong sterilizing effect and low noise

1.  Early effect filter layer
2.  Cellular activated carbon strainer
3.  PCO photocatalyst filter
4.  cold cathode extreme UVC light
5.  Negative ions

• Rotating speed: 1200 ± 100rpm
• Noise: ≤45dB
• Air flow: 4.5m3 / min
• Negative ion concentration: 3 * 106 pcs / cm³
• Ultraviolet light: the wavelength is 254nm; long service life

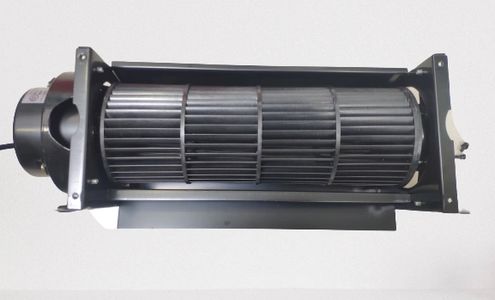

• Impeller size: φ91 X 265mm
• Input power: AC220V 50HZ
•  Rated power: 25W
• Air outlet size: 43 *270mm
• Overall : length 415mm * width 210mm * height 165mm
